Secondary Device


A medical instrument connected with a suction device to remove foreign substances in patients through adjusting pressure.

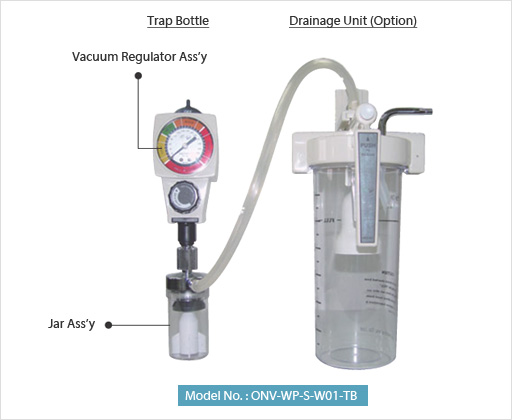

Two Bottle Suction Unit
Two Bottle Suction Unit

※ Feature
- Use Gas : Medical Vacuum
  Standard Suction Pressure : -40 to -101.3 kPa (-300 to -760 mmHg)
  Suction Pressure Control Range : -0.133 to -26.6 kPa (-1 to -200 mmHg)
- Maximum Suction Air Flow rate : 20 LPM
- Safety Device : Overflow Protector
- Vacuum regulator ass’y (Slid & Hook base wall bracket)
- Durable ABS housing cover (One touch clamp)
- Unbreakable polycarbonate collection bottle 0.1L (100cc)

※ Description
- Direct vacuum adapter type
- BS Head Ass’y (Applied Diss Adapter Core)
- 1.2L Drainage Unit is available to connect
- Overflow Protect function
- Infected suction jar separate washing is available.



Wall Suction (W02) Wall Suction (W01) Two Bottle Suction Movable Suction
Thoracic Suction Bubble Jet Type Bubble Type

As this product is a medical device, please read carefully "Precautions" and "How to use" before use.
