Secondary Device


A medical instrument used to lower or maintain pressure of breasts in emergency or in surgery rooms for cardiac department with suction devices.

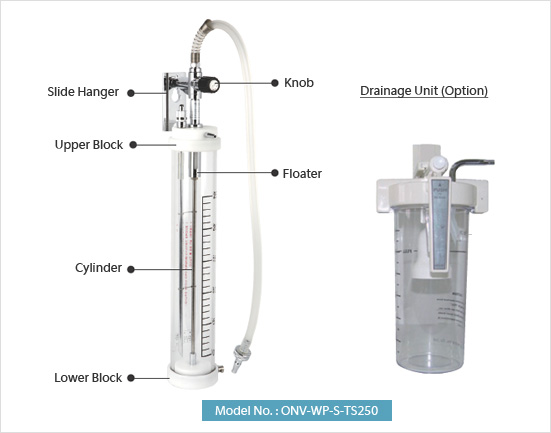

Thoracic Suction Unit
Thoracic Suction Unit

※ Feature
- Use Gas : Medical Vacuum
  Standard Suction Pressure : -66 to -101.3 kPa (-500 to -760 mmHg)
  Suction Pressure Control Range : -0.13 to -2.45 kPa (-1 to -18.4 mmHg)
- Maximum Suction Air Flow rate : 15 LPM
- Collection Unit provide reliable overflow protection
- Drainage Unit : 1.2L (Option)
- Acrylic Cylinder : 0.8L

※ Description
- Water manometer type
- Upper Block Ass’y : Suction Control Knob, Overflow Protection, Slide Hanger
- Lower Block Ass’y: Drain Valve, Clamping Nut



Wall Suction (W02) Wall Suction (W01) Two Bottle Suction Movable Suction
Thoracic Suction Bubble Jet Type Bubble Type

As this product is a medical device, please read carefully "Precautions" and "How to use" before use.
