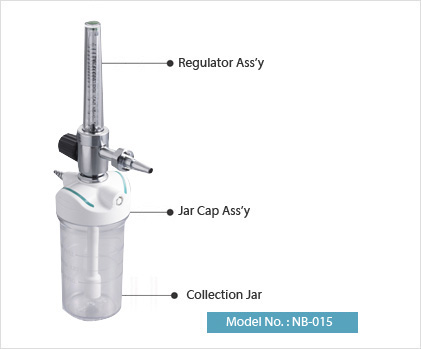

| Flowmeter with Humidifier (Bubble Type) | ||||||||
 |
||||||||
| ※ Feature | ||||||||
| - Use Gas : Medical Oxygen (purity 99.5% or higher) - Standard Pressure : 393 kPa (4.0±0.5 kgf/㎠) - Use Pressure: 345 kPa (3.5 kgf/㎠) - Flow rate : 0~15 LPM - Humidifier (37℃): 25% (Min. 10mg/L) - Bottle Capacity : 180 mL / Use Capacity: 100mL - Patient Tubing: I.D 3/16” to 5/16” - Safety Valve : at 58.6 kPa (0.6 kgf/㎠) |
||||||||
| ※ Description | ||||||||
| - Safety Valve: When the max pressure, occur warning sound
from whistle. - Flow rate of Oxygen : Because oxygen with sound “Click” is supplied if operate regulator knob to patient an excess oxygen supply prevention. |
||||||||
|
||||||||
|
||||||||
