| This device, installed in hospital rooms and districts on each floor, intends to shut down gas supply in case of emergency or if necessary. Installation of this device depends on kinds of gas being supplied and size of valve depends on pipe’s type.
|
|
| |

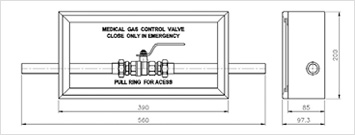

| Shut Off Valve |
|
| |
| ※ Feature |
- Wall mounted for concealed piping
- Frame : Square aluminum 12.3x31mm
- Cover : Emergency breakable acryl panel
- Box : Steel 1.2t baked painting
- Max. 20 kg/㎠ / Ball valve – KSD 5301
- Pipe Size : 10A, 15A, 20A, 25A, 32A, 40A, 50A, 65A |
| |
| ※ Description |
| Front window can remove easily without tool use in crisis as polycarbonate material. |
| |
| |
| |
|
| |
|
