ㆍ Nitrogen Control Panel : A device, which controls pressure in order to use instruments, such as drills and cutters, which can be operated with nitrogen in surgery rooms.
ㆍ Excess Gas Purging Panel : A device to discharge remaining anesthesia gas outside to remove it from surgery rooms. |
|
| |

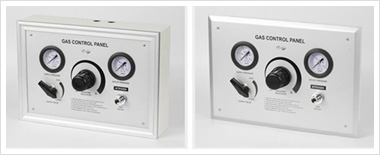

| Gas Control Panel |
| |
| Nitrogen Control Panel |
|
|
 |
| ※ Feature |
- Type : Exposed type, Imposed type
- Supply pressure : 30 kgf/㎠ (2,942 kPa)
- Max pressure : 15 kgf/㎠ (1,471 kPa)
- Operating pressure : 0~15 kgf/㎠
(1,471 kPa)
- Box : Steel 1.2t baked painting
- Panel : Stainless steel 1.2t baked finished |
|
|
| |
| Excess Gas Purging Panel |
|
|
 |
| ※ Feature |
- Type : Wall Imposed type
- Box : Steel 1.2t baked painting
- Panel : Stainless steel 1.2t baked finished
- Inlet excess anesthetic gas & Diss type adapter
- Ejector : Air Muffler type |
|
|
| |
| |
| |
|
| |
|
