Medical Gas Central System

 HOME > Products > Medical Gas Central System

Semi-automatic equipment to supply high-pressure gases, such as oxygen, anesthesia gas and nitrogen, after transferring them to proper pressure. When gas runs out and an alarm rings, replacement is possible through moving a lever so that the alarm is lifted and normal gas can be continuously supplied.

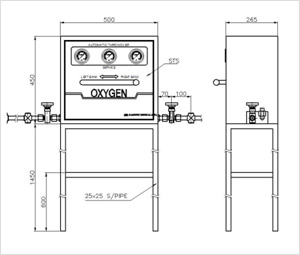

Manifold System
Manifold System Manifold System

※ Feature
- Semi-Automatic
- Auto throw-over / free standing
- Dual Line pressure regulator
- High pressure regulator
- Cost effective
- Easy to maintenance and installation
- Manual device manifold is also available on request.
- Maximum flow : 140N㎥/Hr.
- Cover : Stainless steel 500x450x1.2t
- Panel : Aluminum 2t color printed PP sheet coating
- Frame : square steel pipe 30x30

※ Model Number

Model No. Medical Gas Outlet Pressure
(kg/㎠)		 Max. Inlet Pressure
(kg/㎠)
ONV-MF-SA-01 O2 0 ~ 5 150
ONV-MF-SA-02 N2O 0 ~ 5 150
ONV-MF-SA-03 CO2 0 ~ 5 150
ONV-MF-SA-04 N2 7 ~ 10 150



Manifold System Alarm System Shut Off Valve Gas Control Panel
Wall Outlet Quick Connector Adapter Coupler
